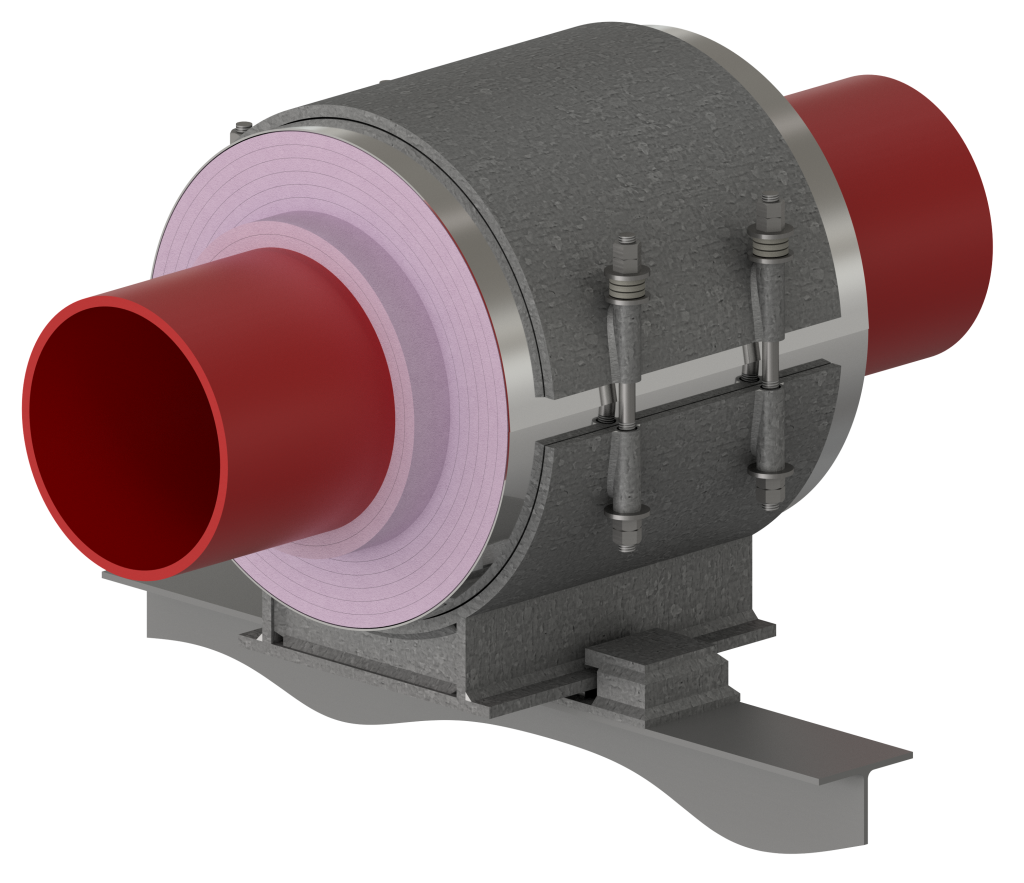

PyroWrap® Supports (Hot)

The Rilco PyroWrap® pipe supports systems are manufactured to match the diameters of the Aspen Aerogels® Pyrogel XTE™ insulation thickness allowing for seamless transitions from the support structure to the line insulation and for the piping to be nested closer together throughout the system’s design. The Pyrogel XTE™ insulation is hydrophobic; however, it still allows water vapor to escape through the insulation, significantly reducing the onset of CUI (Corrosion Under Insulation) at the pipe support locations.

The graphic on the right indicates a diameter comparison of Pyrogel XTE™ insulation compared to several other materials. All four designs provide the same level of thermal protection.

The design of the Rilco PyroWrap® system also permits for the modularization of the pipe. This feature provided the option for the supports along with the insulation to be pre-installed off-site, or at a safe location on-site. The system’s durability enables the pre-installed sections to be transported to the project site without damage.

Additionally, Rilco PyroWrap® pipe supports are differentiated from alternatives by their hydrophobic properties throughout the entire matrix of insulation rather than merely on the surface level.  The structural integrity of the system is unsurpassed due to the durability and resilience of the supports and insulation. PyroWrap® supports are 50-75% thinner than systems with traditional hot insulation such as Calcium Silicate, making them lighter and, therefore, less costly to install.  Furthermore, our supports are uniquely designed for each project and backed up with physical testing in order to ensure they perform for the life of a project.

Finally, one of the most essential benefits that the PyroWrap® systems provide is the ability to support the pipe without sacrificing the dimensional and thermal insulation benefits of the Pyrogel XTE™ material.  When the Pyrogel™ is backed by the Rilco support design and product expertise, the result is the highest quality pipe support for our clients.

Rilco PyroWrap® Pipe Support systems are applicable for environments up to 1200 degrees F.  The Pyrogel XTE™ insulation material is used widely in refineries, petrochemical, and gas processing industries.  It is up to 5 times better in regard to thermal performance than alternative insulation materials.

 Rilco PyroWrap® supports are 50-75% thinner than systems using traditional hot insulations such as Calcium Silicate, making them lighter, and therefore, less costly to install.  The size reduction is largely due to the efficiency of the Pyrogel XTE™ insulation and the cutting edge design of the support structure.

These products are protected by one or more U.S. and Foreign Patents.

Insulation Thickness Range: 0.2 in — 7 in (5mm – 180 mm)

Pipe Size Range: 0.5 in – 42 in

View our Pyrogel®yrogel and Cryogelgel® Catalog for complete specs.

Product Details

Application & Features

  • Temperature range: from -40° F to 1200° F
  • Higher temperature applications available
  • Design loads based on a safety factor of 5
  • A36 steel construction
  • See technical specification RHS-750
  • Test results available upon request
  • Steel finish available in galvanized finish or painted
  • Increased loading capability available. Contact Rilco for more information
  • Support constructed in accordance with ASME B31.1, B31.3, and MSS-SP58 – A307 or A193 B7 plated bolts/studs

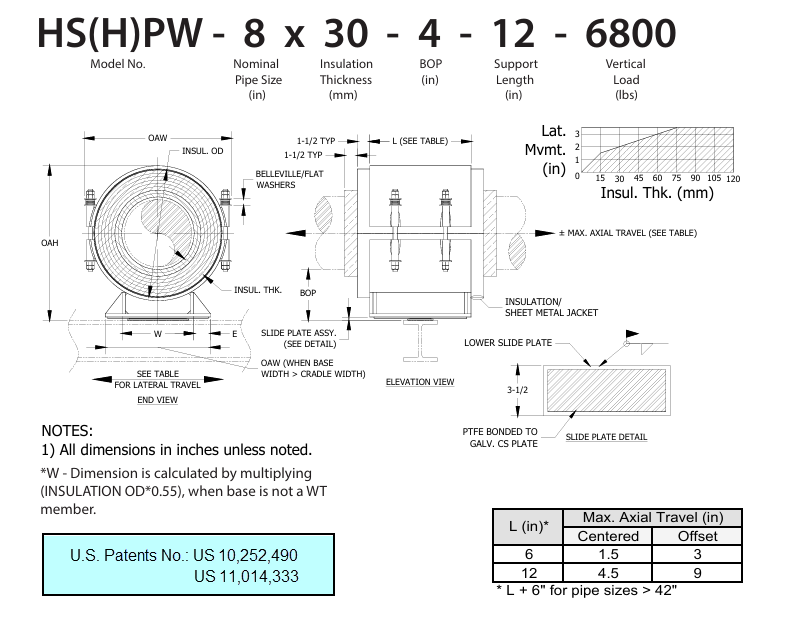

Required data when ordering

  • Model Number
  • Nominal Pipe Size
  • Insulation Thickness
  • E Dimension
  • Support Length
  • Vertical Load
  • Movements

Product Details

Application & Features

  • Temperature range: from -40° F to 1200° F
  • Higher temperature applications available
  • Design loads based on a safety factor of 5
  • A36 steel construction
  • See technical specification RHS-750
  • Test results available upon request
  • Steel finish available in galvanized finish or painted
  • Increased loading capability available. Contact Rilco for more information
  • Support constructed in accordance with ASME B31.1, B31.3, and MSS-SP58 – A307 or A193 B7 plated bolts/studs

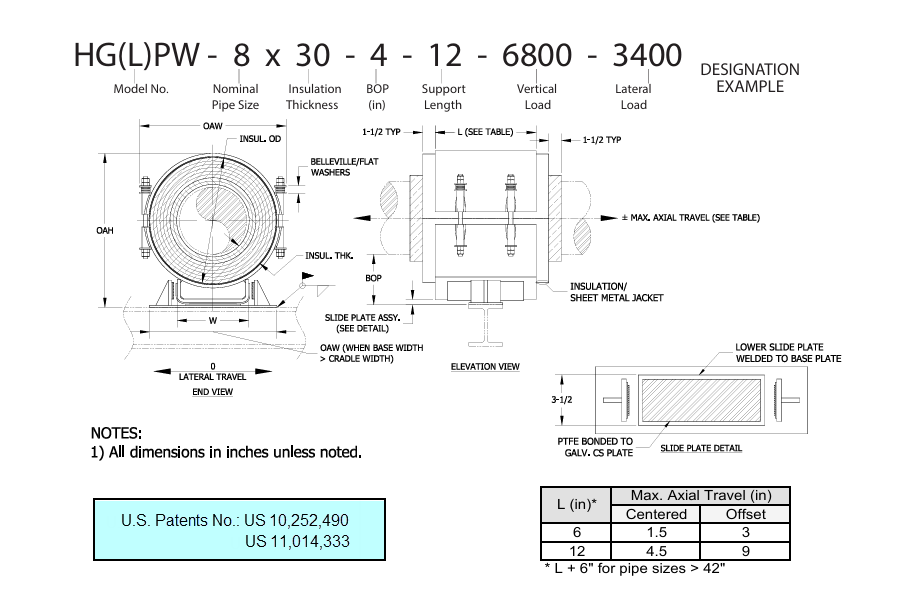

Required data when ordering
