CryoWrap® Supports (Cold)
Our cryogenic supports (CryoWrap®) are manufactured to match the diameters of the Aspen Aerogels® Cryogel® Z insulation material. This allows the system to be designed with the piping nested closer together and for seamless transitions from the support to the line insulation. The Cryogel® Z insulation is hydrophobic, preventing any moisture from penetrating the insulation. The vapor stops incorporated into the support’s design at each end also restrict moisture intrusion.
The graphic below indicates a diameter comparison of Cryrogel® Z insulation compared to several other materials. All four designs meet the same condensation control criteria.

Similar to the PyroWrap® design, this system allows for the “modularization” of the pipe and the option to pre-install all components off-site, or at a safe location on-site. When pre-installed off-site the complete system can then be transported without damage to any components to the jetty or pipeline location. This is proved to be an extremely cost-effective method of construction and facilitates the coordination of the construction schedule.

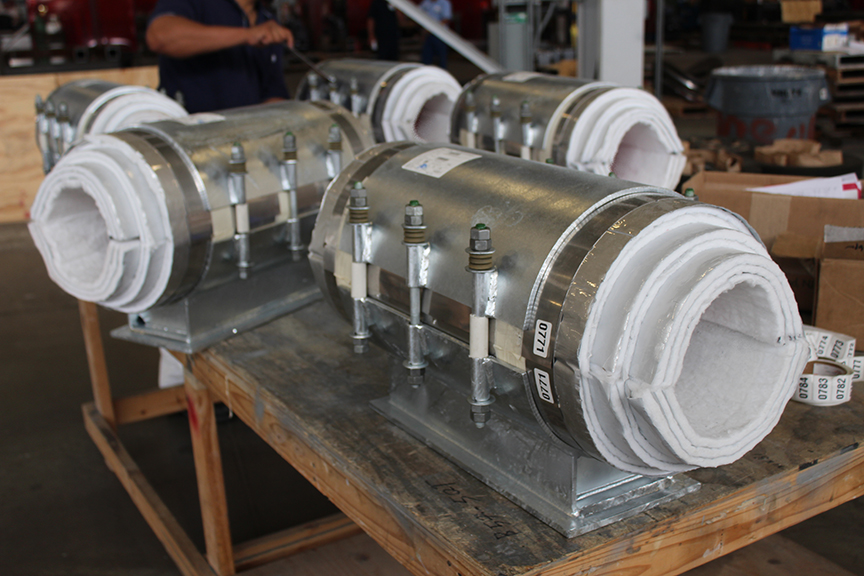

Rilco CryoWrap® pipe supports can be fabricated to cover almost all load-displacement configurations. They are applicable for cryogenic environments with temperatures hovering just above absolute zero. The Cryogel® Z insulation material is used widely in the oil and gas processing industry, particularly with pipes containing fluids such as liquid natural gas, liquified petroleum gas, and ethylene. This insulation has the lowest k-value of any cryogenic insulation alternatives.
These products are protected by one or more U.S. and Foreign Patents .

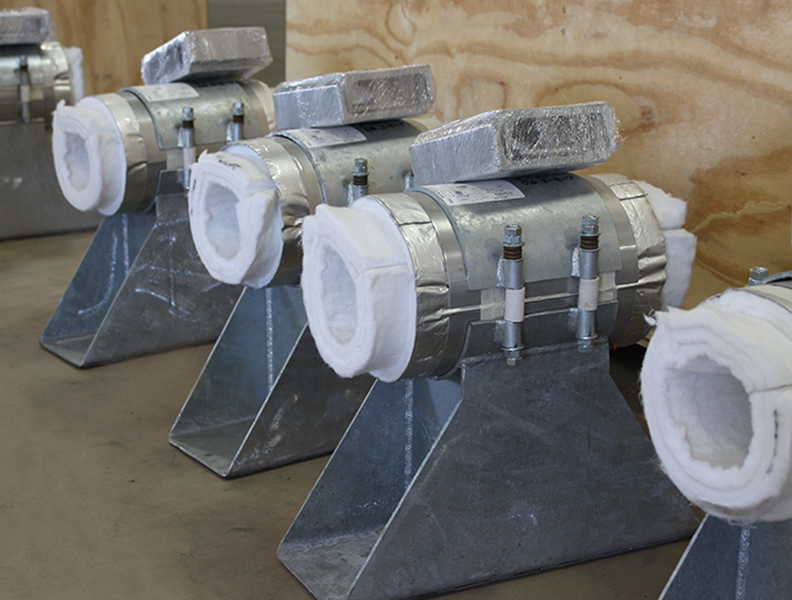

Rilco CryoWrap® supports are roughly half the size of traditional cold insulations such as Polyurethane, making them lighter, and therefore, less costly to install. The size reduction is largely due to the efficiency of the Cryogel® Z insulation and the cutting edge design of the support structure.
Insulation Thickness Range: 0.2in – 7in (5mm – 180mm)
Pipe Size Range: 0.5 inches — 42 inches

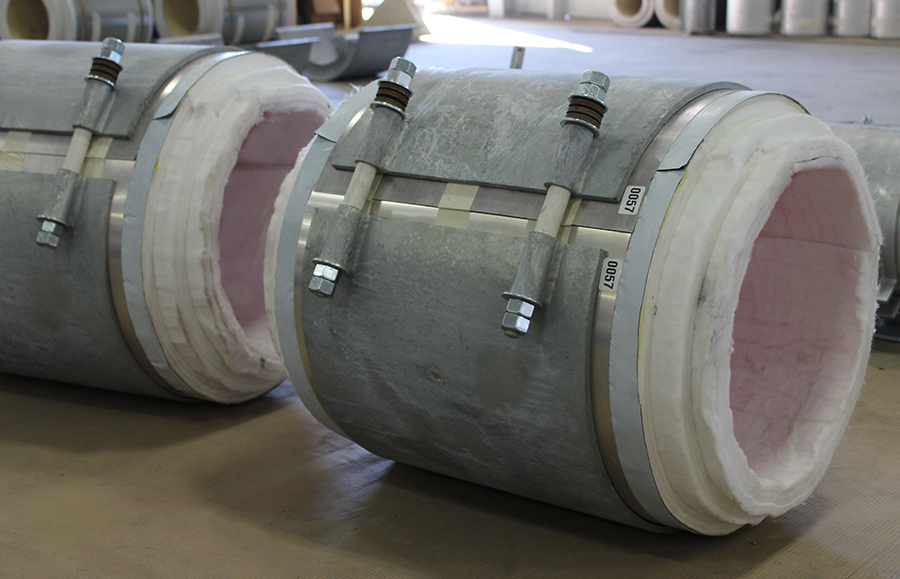

Hanging
Product Details

Application & Features
- Temperature range: from -460° F to 195° F
- Higher temperature applications available
- Design loads based on a safety factor of 5
- A36 steel construction
- See technical specification RHS-750
- Test results available upon request
- Steel finish available in galvanized finish or painted
- Increased loading capability available. Contact Rilco for more information
- Support constructed in accordance with ASME B31.1, B31.3, and MSS-SP58 – A307 or A193 B7 plated bolts/studs
Required data when ordering
- Model Number
- Nominal Pipe Size
- Insulation Thickness
- Support Length (F)
- Vertical Load
- Movements

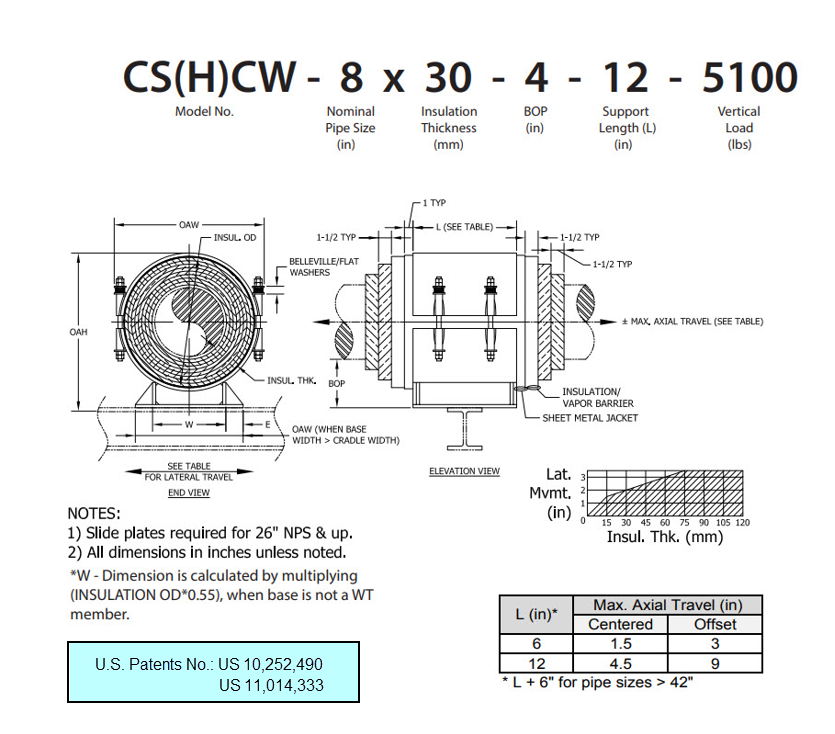

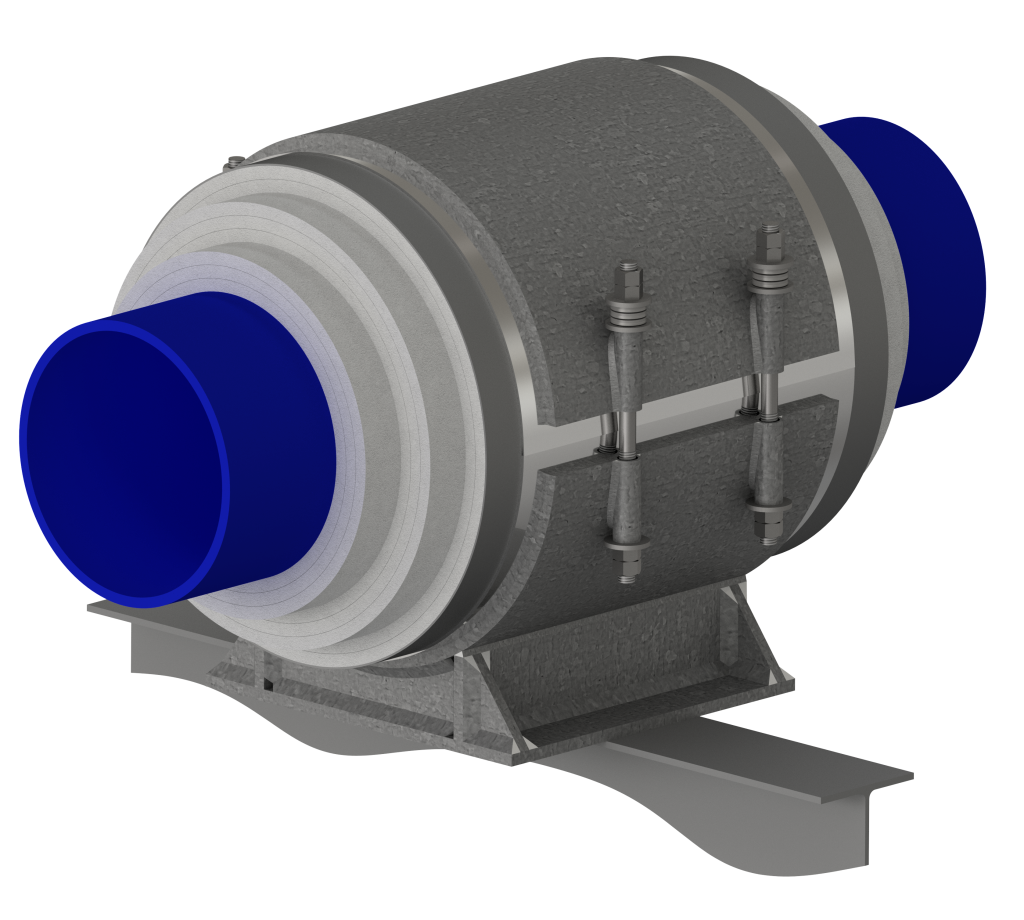

Resting
Product Details

Application & Features
- Temperature range: from -460° F to 195° F
- Higher temperature applications available
- Teflon®/2B SS 304 slide plates on shoe and supporting steel on sizes 26” and larger
- Design loads based on a safety factor of 5
- A36 steel construction
- See technical specification RCS-750
- Test results available upon request
- Steel finish available in galvanized finish or painted
- Increased loading capability available. Contact Rilco for additional information
- Support constructed in accordance with ASME B31.1, B31.3 and MSS-SP58
- A307 or A193 B7 plated bolts/studs
Required data when ordering
- Model Number
- Nominal Pipe Size
- Insulation Thickness
- BOP
- Support Length
- Vertical Load
- Movements

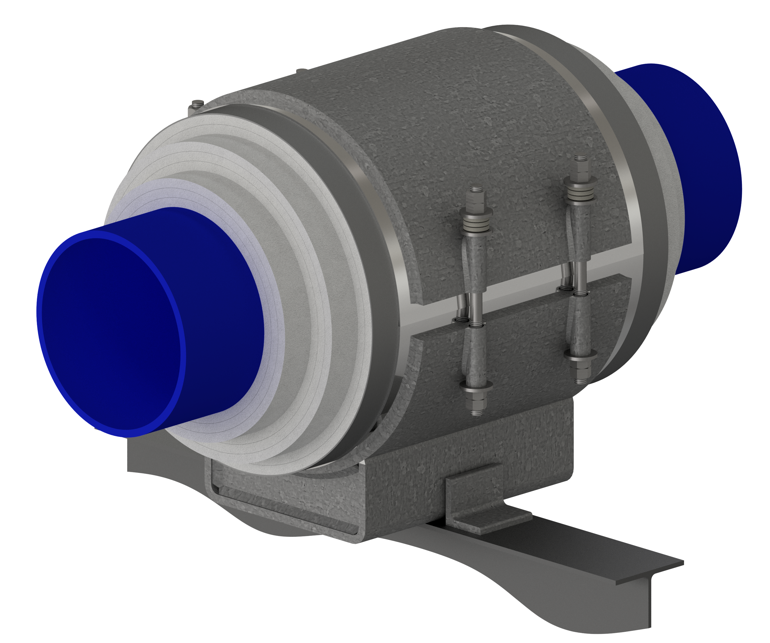

Resting - High Lateral Travel
Product Details

Application & Features
- Temperature range: from -460° F to 195° F
- Higher temperature applications available
- Teflon®/2B SS 304 slide plates on shoe and supporting steel on sizes 26” and larger
- Design loads based on a safety factor of 5
- A36 steel construction
- See technical specification RHS-750
- Test results available upon request
- Steel finish available in galvanized finish or painted
- Increased loading capability available. Contact Rilco for more information
- Support constructed in accordance with ASME B31.1, B31.3, and MSS-SP58 – A307 or A193 B7 plated bolts/studs
Required data when ordering
- Model Number
- Nominal Pipe Size
- Insulation Thickness
- BOP
- Support Length
- Vertical Load
- Movements

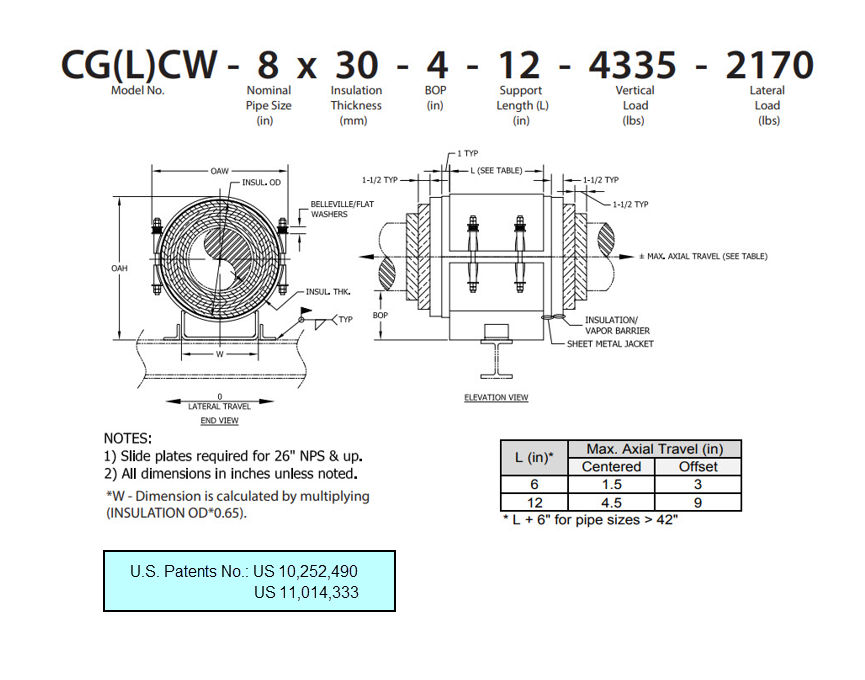

Guided
Product Details

Application & Features
- Temperature range: from -460° F to 195° F
- Higher temperature applications available
- Teflon®/2B SS 304 slide plates on shoe and supporting steel on sizes 26” and larger
- Design loads based on a safety factor of 5
- A36 steel construction
- See technical specification RHS-750
- Test results available upon request
- Steel finish available in galvanized finish or painted
- Increased loading capability available. Contact Rilco for more information
- Support constructed in accordance with ASME B31.1, B31.3, and MSS-SP58 – A307 or A193 B7 plated bolts/studs
Required data when ordering
- Model Number
- Nominal Pipe Size
- Insulation Thickness
- BOP
- Support Length
- Vertical Load
- Lateral Load
- Movements

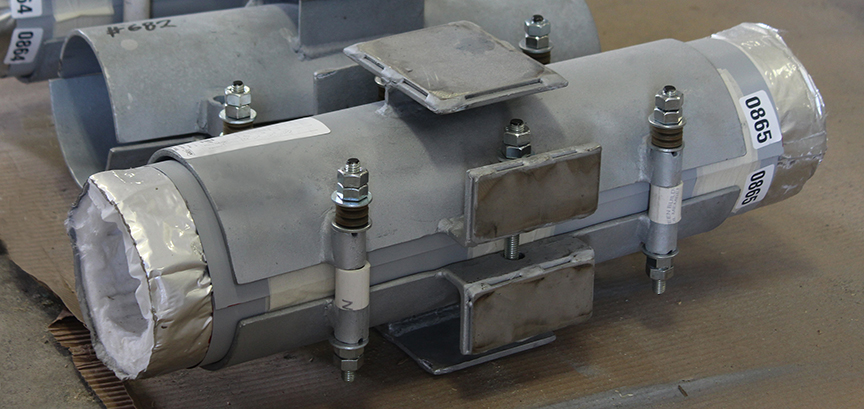

Guided - Vertically Restrained
Product Details

Application & Features
- Temperature range: from -460° F to 195° F
- Higher temperature applications available
- Design loads based on a safety factor of 5
- A36 steel construction
- See technical specification RHS-750
- Test results available upon request
- Steel finish available in galvanized finish or painted
- Increased loading capability available. Contact Rilco for more information
- Support constructed in accordance with ASME B31.1, B31.3, and MSS-SP58 – A307 or A193 B7 plated bolts/studs
Required data when ordering
- Model Number
- Nominal Pipe Size
- Insulation Thickness
- BOP
- Support Length
- Vertical Load
- Lateral Load
- Movements
Anchored
Product Details

Application & Features
- Temperature range: from -460° F to 195° F
- Higher temperature applications available
- Teflon®/2B SS 304 slide plates on shoe and supporting steel on sizes 26” and larger
- Design loads based on a safety factor of 5
- A36 steel construction
- Patented anchor system allows increased load carrying capability and decreased heat transfer
- See technical specification RHS-750
- Test results available upon request
- Steel finish available in galvanized finish or painted
- Increased loading capability available. Contact Rilco for more information
- Support constructed in accordance with ASME B31.1, B31.3, and MSS-SP58 – A307 or A193 B7 plated bolts/studs
Required data when ordering
- Model Number
- Nominal Pipe Size
- Insulation Thickness
- BOP
- Support Length
- Vertical Load
- Lateral Load
- Movements
